Deploy a Celiveo Shared Virtual Printer Package on a Print Server

Follow the steps listed below to deploy a Celiveo Shared Virtual Printer (CSVP) on a Print Server:

1. Download the Deployment Package
2. Install the CSVP on Print Server
3. Verify CSVP on Print Server
4. Connect to a CSVP from a User’s Workstation

1. Download the Deployment Package

1. In the Web Admin, select the CSVP.
2. Click .
   The Shared Virtual Printer Deployment Package downloads.

*Note: For Non-Super admins, multiple selections of CVPs are only allowed for download, edit and delete are disabled.

2. Install the CSVP on Print Server

1. Log in to the server as its administrator.
2. Copy the Virtual Printer Deployment Package to a temporary folder on the print server.
3. Right-click the Deployment Package. A menu displays.

4. Click [Extract All].
5. Select a temporary folder to extract the files to, and click [Extract].
   }!
6. Double-click [Installer] and start the installation. Upon installation, a Celiveo Virtual Printer icon ( ) is placed on the Desktop and the System Tray.

3. Verify CSVP on Print Server

1. Right-click on the system tray. A menu displays.
2. Click [Celiveo Pull Printing]. The Driver and Settings screen displays.


3. Select the printers to use and click .
   A vertical yellow bar starts running on the Celiveo Virtual Printer system tray icon while the printer drivers are installed.
4. Verify that the Celiveo Shared Virtual Printer is added to the Print Server

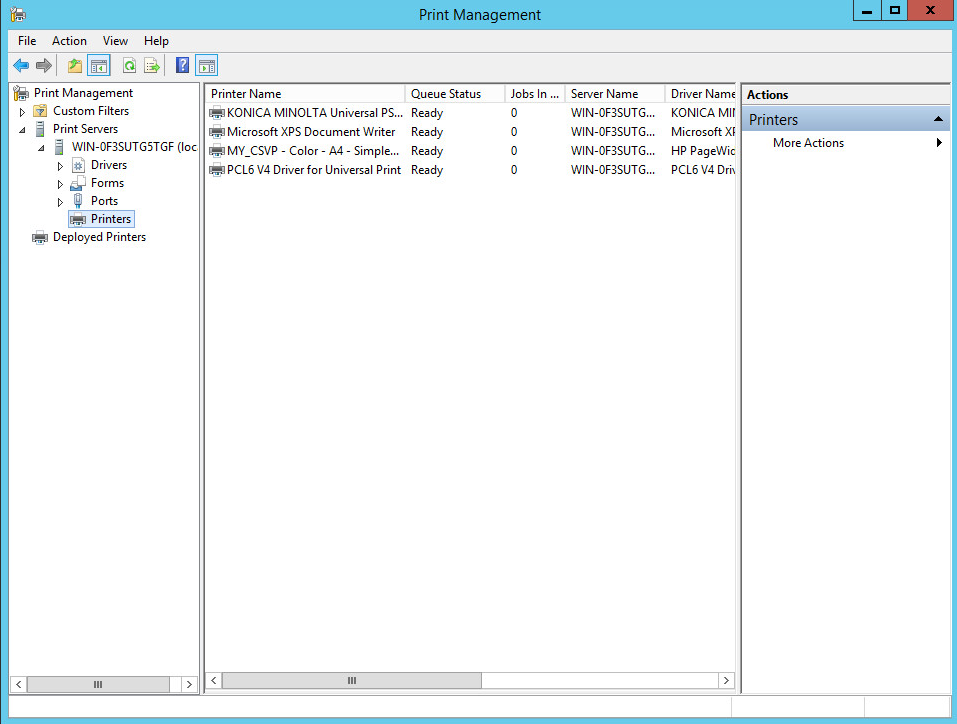

   1. In Server Manager, click Tools > Print Management. The Print Management console displays.
   2. In the left pane, click Print Management > Print Servers > Your_Server_Name > Printers.

   3. Verify that the Celiveo Shared Virtual Printer is listed.

4. Connect to a CSVP from a User’s Workstation

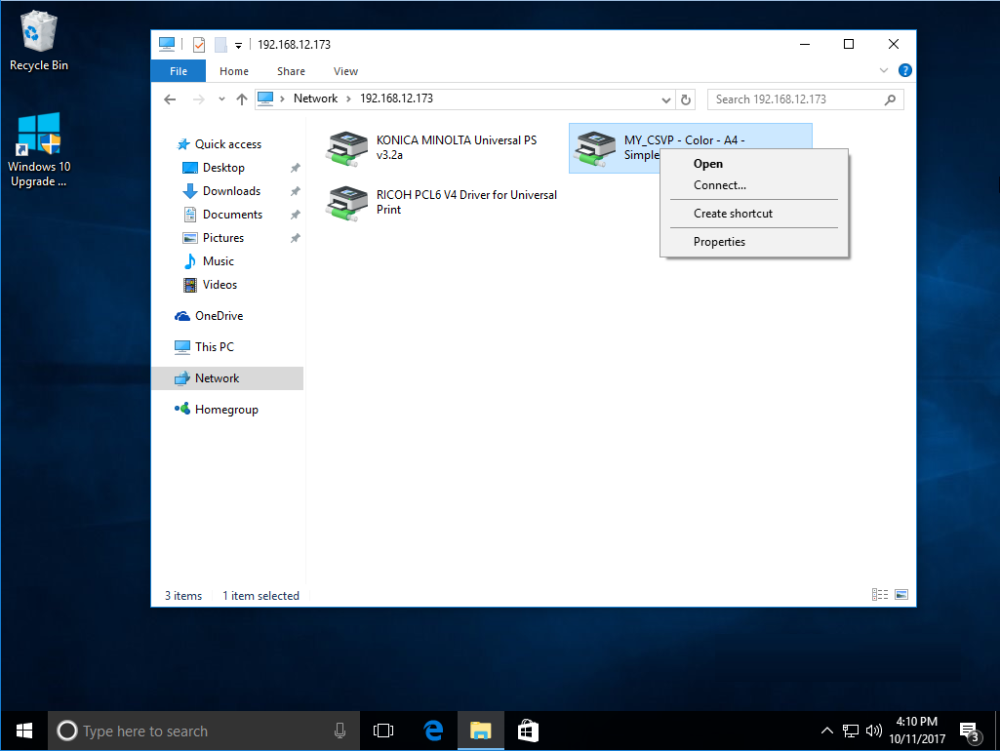

1. From the Workstation, use Windows Explorer to Navigate to the print server.

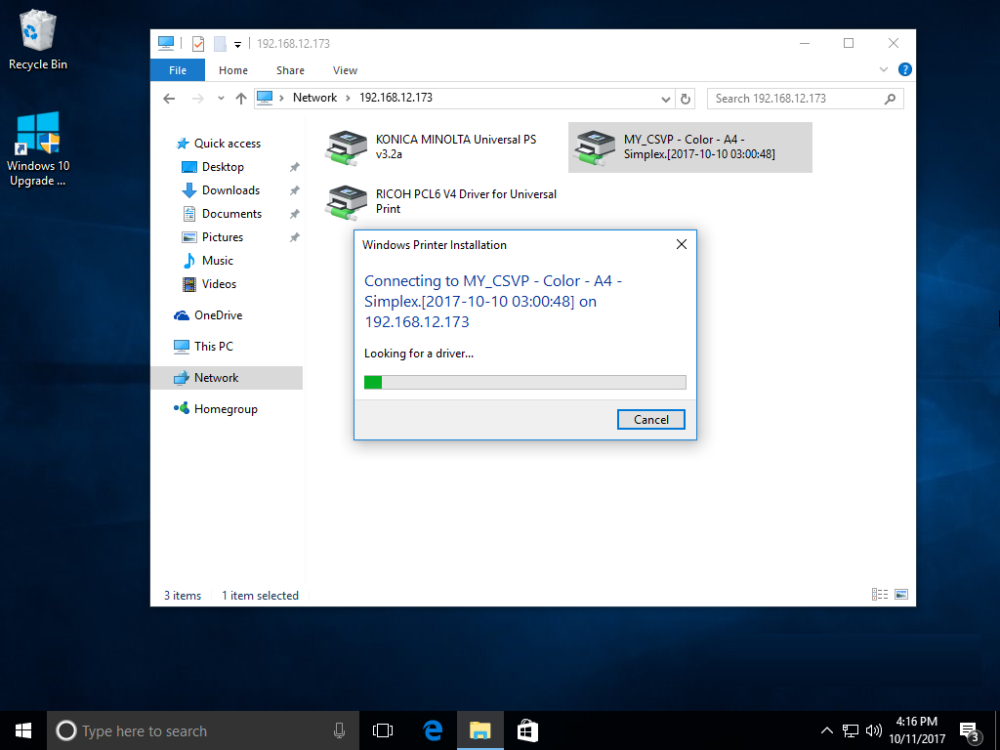

2. Right-click the Celiveo Shared Virtual Printer and select [Connect]. The printer installation starts.

3. In Devices and Printers, verify that the Celiveo Shared Virtual Printer was installed.
